.308, 18" barel uncorking pressure,

Post by strobes » Mon Jul 06, 2020 7:40 pm

Max blast chamber pressure calculated using numbers below is about 3500 psi. Does it look right? (vessel is not sealed, so pressure should be lees then calculated)
.308 18" barrel volume 1.27
1.24x3" blast chamber volume 3.62
2.85 times
10.000 uncorking pressure


Senior Silent Operator
Posts: 130
Joined: Mon Aug 06, 2007 11:58 pm
Location: Anythinggoes, NM

Re: .308, 18" barel uncorking pressure,

Post by 748 » Tue Jul 07, 2020 2:01 pm

It looks like 10,000 to 11,000psi. I have always heard it was 3,000 to 5,000.
11,000psi is pretty intense.
So much has changed since my last form 1

User avatar
Silent But Deadly
Posts: 1864
Joined: Wed Oct 29, 2014 4:38 pm
Location: CT - The AntiConstitution State

Re: .308, 18" barel uncorking pressure,

Post by T-Rex » Thu Jul 09, 2020 8:29 am

Your numbers are a bit off, but not terribly.

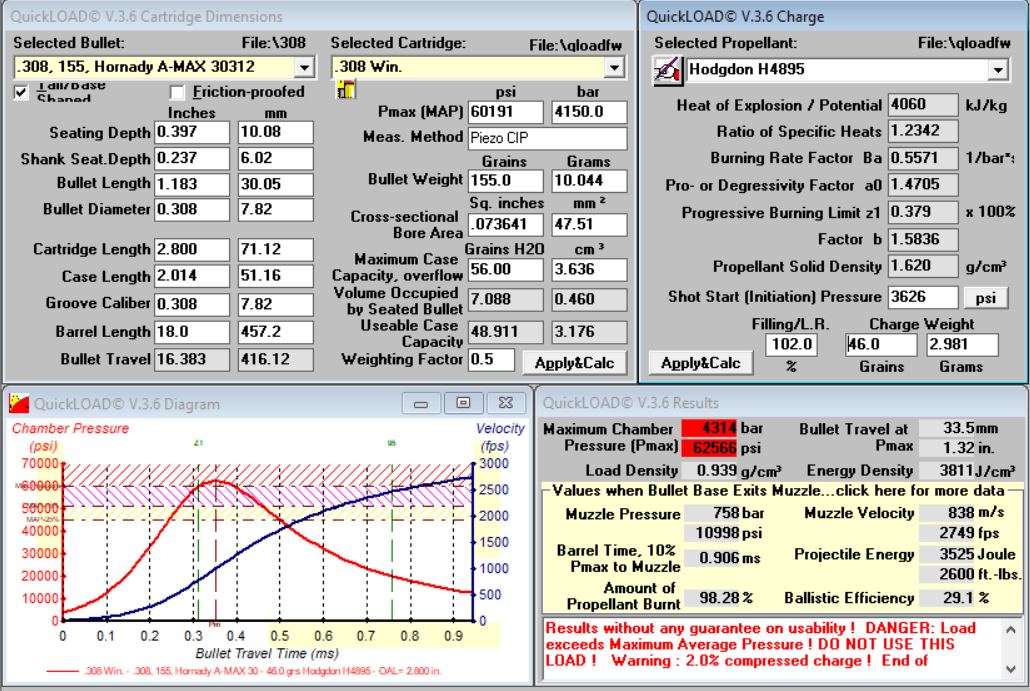

Barrel length needs to have the "chamber" subtracted. Use cartridge overall length, minus bullet length, and subtract this from barrel length. Use that as bore volume. Use QL's "Useable Case Capacity" as your constant for pMax (62kpsi) volume.

Also, your blast volume needs to have volume of mount/brake/etc subtracted as well as blast baffle's proximal geometry.

All of this aside, I still get ~10kpsi uncork and ~2.7kpsi for internal blast chamber.
